Product Details
Place of Origin: China
Brand Name: SN
Model Number: SN-1250
Payment & Shipping Terms
Minimum Order Quantity: 1 Piece
Price: Negotiable
Keywords: |
Lithium Battery Tester |
Product Name: |
Battery Capacity Tester |
Application: |
Lithium Battery,Acid-lead Battery |
Measure Range: |
12V |
Warranty: |
6 Years |
Discharge Current: |
40A |
Input Power: |
AC 220V |
Function: |
Test Capacity |
Display Mode: |
Segment LCD |
Power: |
0-2000W |
Selling Units: |
Single Item |
Single Package Size : |
60X40X30 Cm |
Single Gross Weight: |
15.000 Kg |
Package Type: |
Bubble Bag And Catton |
Keywords: |
Lithium Battery Tester |
Product Name: |
Battery Capacity Tester |
Application: |
Lithium Battery,Acid-lead Battery |
Measure Range: |
12V |
Warranty: |
6 Years |
Discharge Current: |
40A |
Input Power: |
AC 220V |
Function: |
Test Capacity |
Display Mode: |
Segment LCD |
Power: |
0-2000W |
Selling Units: |
Single Item |
Single Package Size : |
60X40X30 Cm |
Single Gross Weight: |
15.000 Kg |
Package Type: |
Bubble Bag And Catton |

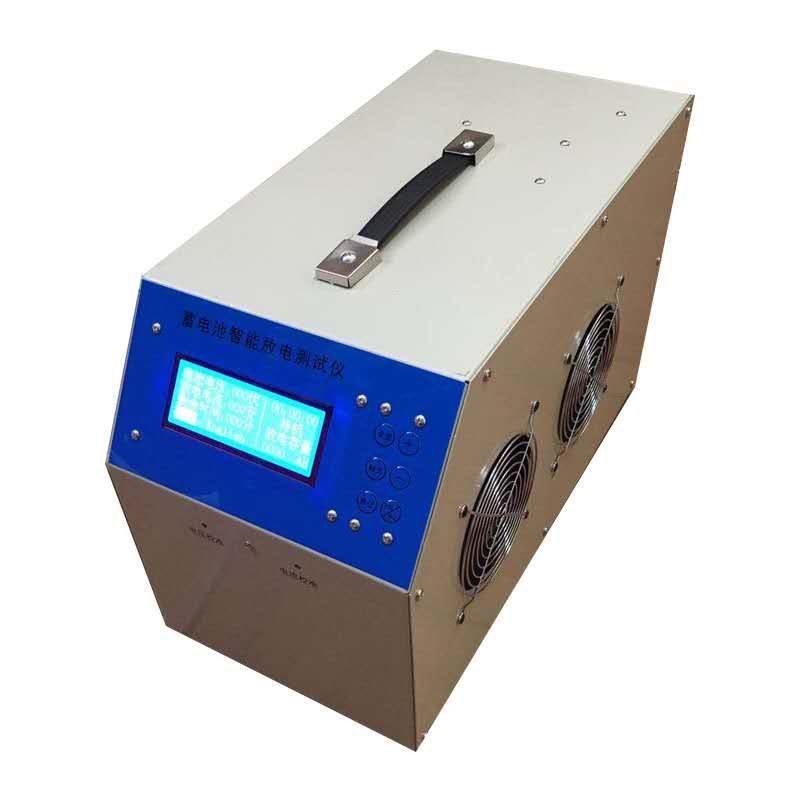

AC 220V Acid Lead Li-Ion Capacity 12V 50A Lithium Battery Tester
Lithium Battery Tester Description:
1. Large blue LCD screen. Button operation setting is easy and convenient.
2. Using imported PTC ceramic resistors, the maximum temperature does not exceed 60 degrees, making the entire discharge process safer.
3. The automatic stop discharge protection function is complete when the discharge time is up; the lower limit of the
set total voltage is reached or the load connection is abnormal; the discharge will automatically stop and alarm.
4. The battery's stop protection voltage is arbitrarily set, the discharge current is arbitrarily set, and the discharge stop time is arbitrarily set.
5. Real-time display of discharge voltage, discharge current, discharge time, and battery discharge capacity when discharging.
Lithium Battery Tester Parameter:
| MODEL | SN12/50 |
| Working Voltage | AC220V |
| Battery pack nominal voltage | 12V |
| Discharge current | 1-50A (setting freely) |
| Large current solution: | can be parallel machine discharge or custom. |
| Current detection accuracy | 1% |
| Constant discharge voltage rage | 12V±18% |
| Accuracy of the total voltage | 0.50% |
| Battery discharge time | 0-999minutes (setting freely) |
| Cut-off protection voltage | 1-12V set freely |
| Cooling mode | forced air cooling |
| Discharge load | Imported ceramic PTC |
| Display mode: | LED liquid and button |
| Application | Acid-lead, Lithium battery |
| Weight | 10 kg |
| Mainframe size: | 220*230*500mm. |
| Package | Carton/wooden case/AL case |
| Remark | Can customer-made as per your request |
The tester is guaranteed for 6 years under non-human damage conditions, as follows:
1. The freight will be paid by both parties within three months from the date of purchase
2. The freight will be borne by the user after three months from the date of purchase
3. Repairs beyond the warranty period: basic labor and device fees are charged, and the freight is borne by the user
4. Accessories such as online cable, test cable and power supply are not covered by the warranty
5. Unauthorized disassembly or modification is not covered by the warranty
Lithium Battery Tester Factory:
Shenzhen Paisen Import & Export Co., Ltd. specializes in the production, sales and research and development of various lithium-ion battery packs, lithium battery protection management systems, lithium battery testing equipment and other related products. Products are widely used in electric bicycles, pure electric low-speed vehicles, special vehicles, telecom backup power, solar home energy storage systems and outdoor mini emergency backup power. We have more than 10 years of battery manufacturing experience and a professional R&D team of more than 10 people. Several hardware and software engineers. We are known for excellent quality, competitive prices, first-class craftsmanship, safe packaging and prompt delivery. Since its establishment, we have had our own production base in Guangdong. And maintain long-term cooperation with battery manufacturers in Europe and many countries in the world. With excellent product quality, an efficient marketing team, and professional after-sales service, we strive to meet customer needs more sincerely. We can develop and produce batteries according to customers' designs and requirements. We provide a one-stop purchasing service, where you can find all major accessories related to lithium batteries, saving customers time and money.
AL Gift case: AL case for easy carry and storage.
Carton:Normal safe packing.
Wooden case:Safe packing for air shipping or express.
