Product Details
Place of Origin: China
Brand Name: ZKE
Model Number: EBC-A20
Payment & Shipping Terms
Minimum Order Quantity: 1 Piece
Price: Negotiable
Keywords: |
Lithium Battery Tester |
Product Name: |
Battery Capacity Tester |
Function: |
Test Capacity Voltage Current |
Application: |
Lithium Battery,acid-lead Battery |
Usage: |
Reference Manual |
Color: |
White |
Voltage: |
9-30V |
Discharge Current: |
0.1-20A |
Power Supply: |
Voltage:100V AC~256V AC |
Accuracy: |
0.1% |
Selling Units: |
Single Item |
Single Package Size : |
45X36X20 Cm |
Single Gross Weight: |
6.500 Kg |
Package Type: |
Ployfoam And Bybble Bag 5-ply Carton |
Keywords: |
Lithium Battery Tester |
Product Name: |
Battery Capacity Tester |
Function: |
Test Capacity Voltage Current |
Application: |
Lithium Battery,acid-lead Battery |
Usage: |
Reference Manual |
Color: |
White |
Voltage: |
9-30V |
Discharge Current: |
0.1-20A |
Power Supply: |
Voltage:100V AC~256V AC |
Accuracy: |
0.1% |
Selling Units: |
Single Item |
Single Package Size : |
45X36X20 Cm |
Single Gross Weight: |
6.500 Kg |
Package Type: |
Ployfoam And Bybble Bag 5-ply Carton |

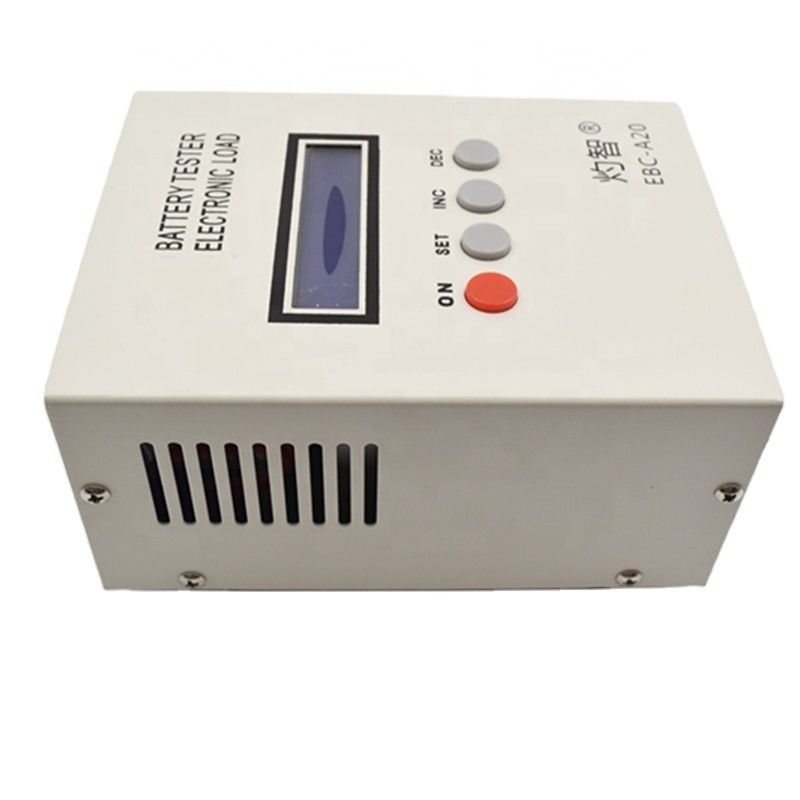

EBC A20 Lithium Battery Tester 20A 18V 85W LiFePO4 Capacity Tester
Lithium Battery Tester Description:
1. EBC-A20H is a battery capacity tester for battery capacity testing in the range of 12V-30V. It has a built-in discharge load resistance, supports external battery pack chargers, automatically switches between charge and discharge, and supports computer online drawing of curves. If you want a bigger voltage 36-108V, please click to see our other models.
2. EBC-A20 Battery Tester This tester is specially designed for a 12-30V battery pack capacity test. You can set the discharge current and cutoff voltage. The tester supports automatic discharge and automatic charging via a portable external battery charger. Connect it to a computer for full test charts and extensive functionality.
3. The EBC-A20 battery tester product list includes tester, test lead, power lead and 19V 4A charger.
Lithium Battery Tester Parameter:
|
Product Name
|
12-30V battery capacity Tester for acid-lead /lithium battery/LFP battery /Li-po Battery
|
|
Input power supply
|
AC 100-240V
|
|
Voltage setting range:
|
9.00-30.00V, stepper 0.01V
|
|
Discharge current:
|
0.10-20.00A, stepper 0.01A(Max 10A for 12V battery pack)
|
|
Detection Mode
|
DSC:vCV discharge, Voltage lower than the cut-off voltage set then stop automatically
|
|
CHG: Charing through the external charger, Current lower the cut-off current set then stop automatically
|
|
|
Discharge voltage detection
|
0.10-30.00V, stepper 0.01V,
|
|
Capacity detection:
|
< 10Ah, accuracy 0.001Ah;
|
|
10-100Ah, accuracy 0.01Ah;
|
|
|
> 100Ah, accuracy 0.1Ah
|
|
|
Cable connection
|
Voltage and current channels separated for high test accuracy
|
|
LCD display
|
voltage, current, time, capacity, etc
|
|
PC connection:
|
the tester can connect to a computer through a designated USB-TTL cable
|
|
for more functions, like graphs, calibration, firmware upgrades, and test circulation.
|
Lithium Battery Tester Factory:
Shenzhen Paisen Import & Export Co., Ltd. specializes in the production, sales and research and development of various lithium-ion battery packs, lithium battery protection management systems, lithium battery testing equipment and other related products. Products are widely used in electric bicycles, pure electric low-speed vehicles, special vehicles, telecom backup power, solar home energy storage systems and outdoor mini emergency backup power. We have more than 10 years of battery manufacturing experience and a professional R&D team of more than 10 people. Several hardware and software engineers. We are known for excellent quality, competitive prices, first-class craftsmanship, safe packaging and prompt delivery. Since its establishment, we have had our own production base in Guangdong. And maintain long-term cooperation with battery manufacturers in Europe and many countries in the world. With excellent product quality, an efficient marketing team, and professional after-sales service, we strive to meet customer needs more sincerely. We can develop and produce batteries according to customers' designs and requirements. We provide a one-stop purchasing service, where you can find all major accessories related to lithium batteries, saving customers time and money.
