Product Details
Place of Origin: China
Brand Name: CALB
Certification: MSDS
Model Number: 09081220
Payment & Shipping Terms
Minimum Order Quantity: 4-49 Pieces
Price: Negotiable
Keywords: |
LFP Prismatic Cell |
Application: |
Electric Folklifts, OTHER, Golf Carts, Electric Power Systems, Power Tools, Electric Bicycles/Scooters, Toys, Solar Energy Storage Systems, Electric Wheelchairs, BOATS, Electric Vehicles, Home Appliances, SUBMARINES, Electric Bicycles |
Battery Size: |
135*30*220mm |
Weight: |
1.9KG |
Nominal Voltage: |
3.2 Volt |
Nominal Capacity: |
72ah |
Cycle Life: |
3000times |
Size: |
135*30*220mm |
Keywords: |
LFP Prismatic Cell |
Application: |
Electric Folklifts, OTHER, Golf Carts, Electric Power Systems, Power Tools, Electric Bicycles/Scooters, Toys, Solar Energy Storage Systems, Electric Wheelchairs, BOATS, Electric Vehicles, Home Appliances, SUBMARINES, Electric Bicycles |
Battery Size: |
135*30*220mm |
Weight: |
1.9KG |
Nominal Voltage: |
3.2 Volt |
Nominal Capacity: |
72ah |
Cycle Life: |
3000times |
Size: |
135*30*220mm |

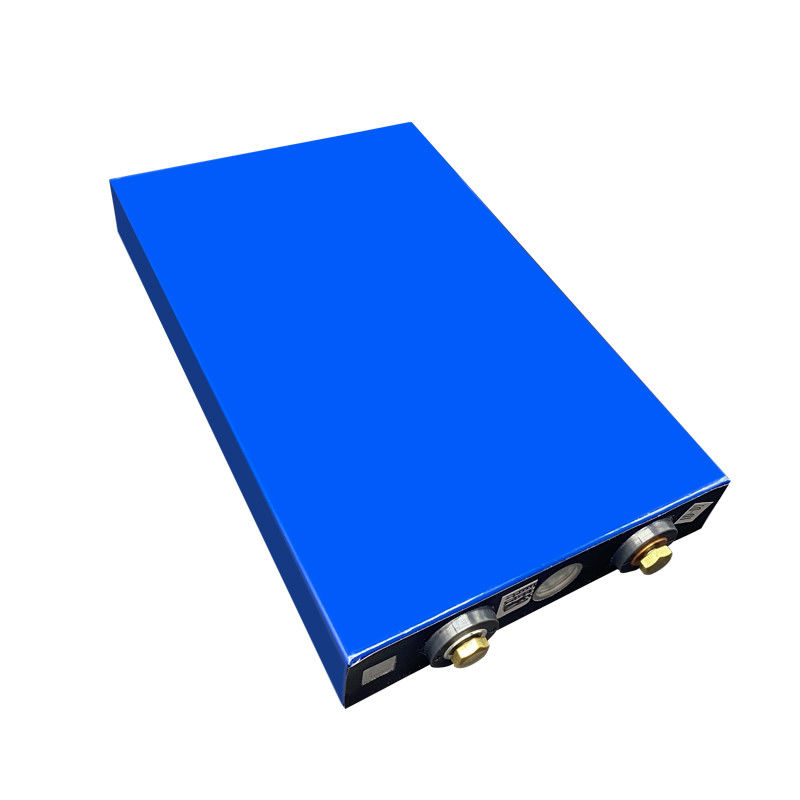

MSDS Certified LiFePO4 3.2V 72AH LFP Square Battery 135*30*220mm
LFP Prismatic Cell Features:
1. Excellent performance.
2. High stability.
3. Long life time.
LFP Prismatic Cell Description:
Lithium iron phosphate battery (LiFePo4 battery cell) is a lithium-ion battery using lithium iron phosphate (LiFePO4) as the cathode material and carbon as the negative electrode material, with a single cell rated at 3.2V and a charging cut-off voltage of 3.6V~3.65V.
LFP Prismatic Cell Application:
Solar Energy Storage, Solar power system, UPS, Engine starting battery, Electric bicycle / motorcycle / scooter, Golf trolley / carts, Power tools, Solar and wind power system, RV, Caravan, Emergency light.
LFP Prismatic Cell Parameters:
| Model No. | CALBLFP72 | CALBLFP80 | CALBLFP100 | CALBLFP180 | CALBLFP200 |
| Rated Capacity | 72Ah | 80Ah | 100Ah | 180Ah | 200Ah |
| Nominal Voltage (V) | 3.2V | 3.2V | 3.2V | 3.2V | 3.2V |
| Chemistry | LiFePo4 | LiFePo4 | LiFePo4 | LiFePo4 | LiFePo4 |
| Internal Impedance | ≤0.4mΩ | ≤0.4mΩ | ≤0.4mΩ | ≤0.5mΩ | ≤0.6mΩ |
| Shell Material | Aluminium | Aluminium | Plastic | Plastic | Plastic |
| Dimension? (mm) H*W*D | 220x135x29 | 220x135x29 | 216x142x67 | 279x180x71 | 279x182x71 |
| Weight(Kg) | 1.75±0.15 kg | 1.87±0.15 kg | 3.3±0.15 kg | 5.6±0.15 kg | 5.7±0.15 kg |
| Maximum continuous discharge current | 100A (1C) | 80A (1C) | 100A (1C) | 180A (1C) | 200A (1C) |
| Maximum pulse discharge current | 216A (3C) | 240A (3C) | 200A (2C) | 360A (2C) | 400A (2C) |
| Maximum charge current | 72A (1C) | 80A (1C) | 100A (1C) | 180A (1C) | 200A (1C) |
| Charge voltage | 3.65V | 3.65V | 3.65V | 3.65V | 3.65V |
| End of discharge voltage | 2.5V | 2.5V | 2.5V | 2.5V | 2.5V |
| Charging temperature | -5°C~60°C | -5°C~60°C | -5°C~60°C | -5°C~60°C | -5°C~60°C |
| Discharging temperature? | -30°C~60°C | -30°C~60°C | -30°C~60°C | -30°C~60°C | -30°C~60°C |
