Product Details
Place of Origin: China
Brand Name: ASSIONALLK
Model Number: LK32320
Payment & Shipping Terms
Minimum Order Quantity: 8-256 Pieces
Price: Negotiable
Delivery Time: 5-8workdays
Payment Terms: T/T
Supply Ability: 10000pcs per week
Keywords: |
LFP Prismatic Cell |
Nominal Voltage: |
3.2V |
Standard Capacity Capacity: |
320AH |
Battery Size: |
73*174*207mm |
Weight: |
5.6KG |
Battery Type: |
LiFePO4 |
AC Impedance Resistance: |
0.1-0.3mΩ |
Discharge Temperature: |
-30~60℃ |
Keywords: |
LFP Prismatic Cell |
Nominal Voltage: |
3.2V |
Standard Capacity Capacity: |
320AH |
Battery Size: |
73*174*207mm |
Weight: |
5.6KG |
Battery Type: |
LiFePO4 |
AC Impedance Resistance: |
0.1-0.3mΩ |
Discharge Temperature: |
-30~60℃ |

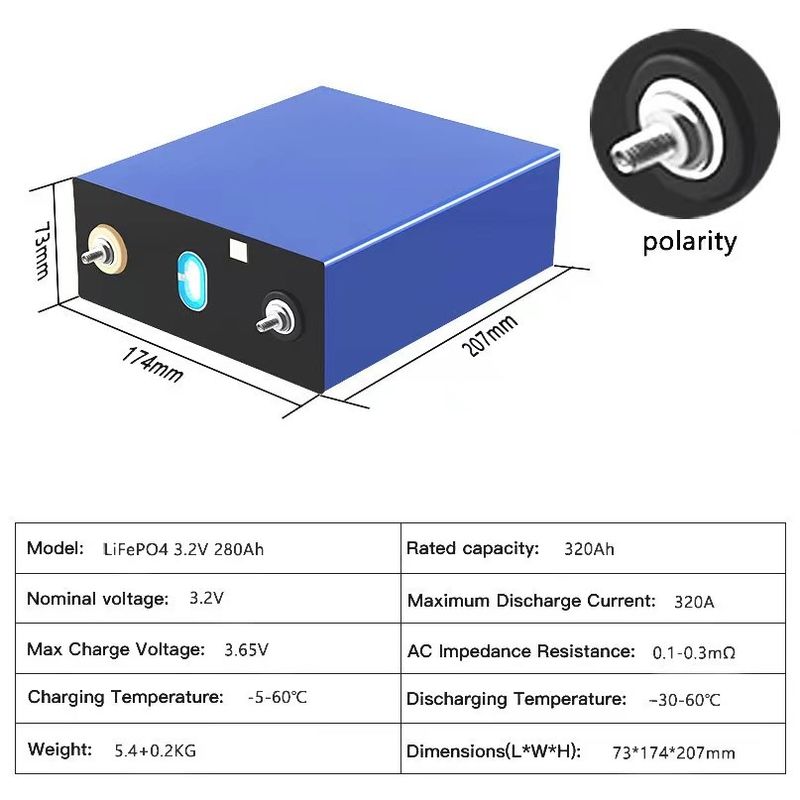

3.2V 320Ah Rechargable Solar Energy Storage LiFePO4 Prismatic Cell
LFP Prismatic Cell Description:
1. Extreme Light Weight.
2. Low Self Discharge.
3. Superior Cranking Power.
LFP Prismatic Cell Parameters:
| Rated capacity | 320 AH | End-of-Discharge Voltage | 2.5V |
| Application | Solar energy storage, ESS | Charge Voltage | 3.65V |
| Dimensions(L*W*H) | 174*73*207mm | Continuous Discharge Current | 320A(1C) |
| Weight | 5.6kg | Cycle life (80%DOD) | 4000 cycles |
| Internal Resistance | 0.1 ~ 0.3mΩ |
Discharge temperature range
|
-35ºC~65ºC |
Widely Application:
Solar energy storage system.
Home applicance.
Energy storage.
Decorative lighting, Solar lamps, torch, emergency light, solar street light and power supply.
