Product Details
Place of Origin: China
Brand Name: Passional
Model Number: PSN-BESS01
Payment & Shipping Terms
Minimum Order Quantity: 1
Packaging Details: 20GP
Payment Terms: T/T
Supply Ability: 5/MONTH
Operating Humidity: |
0-95% RH |
Weight: |
15 Tons |
Battery Type: |
Lithium-ion LFP |
DC Battery Voltage Range: |
553V~670V |
Operating Altitude: |
0-2000m |
Warranty: |
5 Years |
Rated Frequency: |
50HZ |
Operating Temperature: |
0-50°C |
Operating Humidity: |
0-95% RH |
Weight: |
15 Tons |
Battery Type: |
Lithium-ion LFP |
DC Battery Voltage Range: |
553V~670V |
Operating Altitude: |
0-2000m |
Warranty: |
5 Years |
Rated Frequency: |
50HZ |
Operating Temperature: |
0-50°C |
The demand for renewable energy sources has grown dramatically in recent years. To ensure reliable electricity supply, BESS (Battery Energy Storage System) has been used to compensate for the intermittency of renewable energy sources. BESS can provide essential values for operators by avoiding curtailment of renewable energy sources and maximizing their revenue. Additionally, BESS can stabilize the electricity supply by storing the excess energy to be released when needed.
Overall, BESS can be a crucial element in the transition to renewable energy and provide a cost-effective and reliable solution for managing energy demands. It is also an excellent tool to hedge against future energy price increases.
Energy Arbitrage
Integrating battery energy storage system based on our engineering & EPC experiences Robust, bankable utility grade system, with tier 1 suppliers
·Cost effective and scalable
·Customizable ratings- MW and MWh
·Containerized outdoor package design for easy construction and maintenance
System design for optimized footprint and turnkey cost
Available as just an equipment package or turnkey

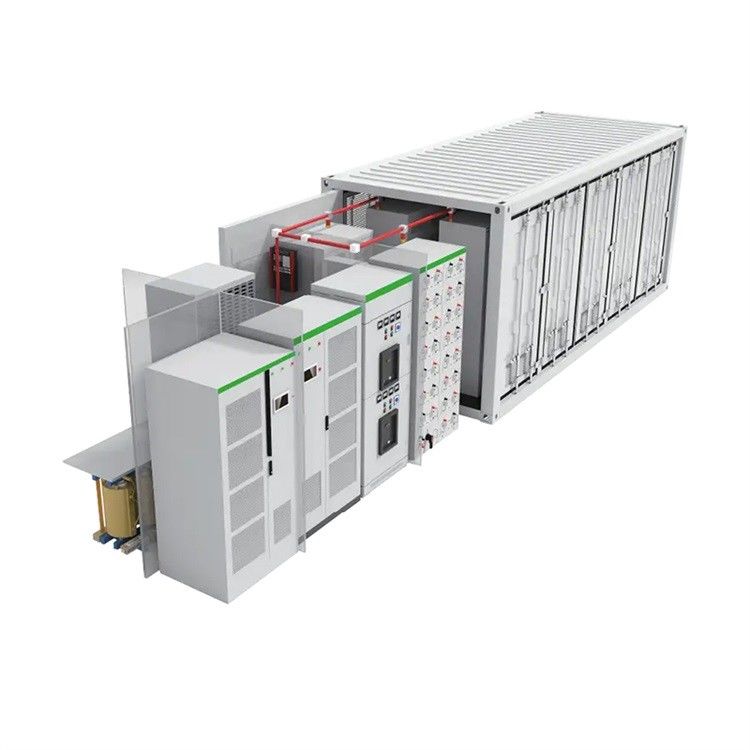

Passional’s Battery Energy Storage Station (Model Number: PSN-BESS01) is a containerized energy storage station that provides energy storage solution for solar, grid, and other renewable energy sources. It is designed to be installed in a 20GP container and it is appropriate for small-scale, remote, island, or off-grid applications. This station is equipped with a 150kW power input and features advanced safety protection including overvoltage, undervoltage, overcurrent, overheat, and short circuit protection. The station is also equipped with a Lithium-ion LFP battery with a voltage range of 553V~670V and is capable of working in humidity levels ranging from 0-95% RH. With its containerized design, this Battery Energy Storage Station is perfect for micro-grid and renewable energy applications.
| 1MWH BESS ALL IN ONE | |||
| Item | QTY | UNIT | SPECIFICATION |
| Container | 1 | PC | 20FT/30FT |
| LFP BATTERY | 1 | SET | 1000KWh |
| Battery combiner cabinet | 1 | PC | 6 GROUPS IN PARALLEL |
| Battery control cabinet | 1 | PC | Battery Control and Monitoring |
| PCS(power control system) | 1 | SET | 150KW |
| Distribution Cabinet | 1 | PC | 380V |
| Air Conditioning System | 2 | PC | 1.2KW |
| ESS container lighting system | 1 | SET | |
| ESS container fire fighting system | 1 | SET | |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Customer Support: We provide expert customer support to answer any questions or concerns you may have about our Battery Energy Storage Station.
Installation and Maintenance: We provide professional installation and maintenance services to ensure that your Battery Energy Storage Station is working properly and efficiently.
Upgrades and Replacement Parts: We offer upgrades and replacement parts for our Battery Energy Storage Station to keep it running smoothly and efficiently.
Training and Education: We offer training and education services to ensure that you are familiar with the features and functions of our Battery Energy Storage Station.
Warranty and Repair: We offer warranty and repair services for our Battery Energy Storage Station to keep it running efficiently and safely.
Battery Energy Storage Station is shipped securely and safely in strong, durable packaging. All components of the Battery Energy Storage Station are tested for robustness and safety during packaging. All parts are securely padded and sealed to ensure that there are no damages during transit.
The Battery Energy Storage Station is shipped using a reliable carrier. The tracking number is provided as soon as the package is shipped. All packages are insured for the full value of the product.
