Product Details
Place of Origin: China
Brand Name: PASSIONALLD
Certification: UN38.3/MSDS/CE/FCC/ROHS
Model Number: PS48100rack
Payment & Shipping Terms
Minimum Order Quantity: 5pcs
Price: Negotiable
Delivery Time: 25-30 days
Payment Terms: T/T
Supply Ability: 10000pcs per week
Keywords: |
5 KWH Wall Battery |
Warranty: |
3years |
Application: |
Solar Energy Storage |
Battery Size: |
500*460*145mm |
The Charging Ratio: |
1 C /2 C |
Nominal Capacity: |
100AH |
Nominal Voltage: |
51.2Volts |
Cycle Life: |
About 6000 Times |
Keywords: |
5 KWH Wall Battery |
Warranty: |
3years |
Application: |
Solar Energy Storage |
Battery Size: |
500*460*145mm |
The Charging Ratio: |
1 C /2 C |
Nominal Capacity: |
100AH |
Nominal Voltage: |
51.2Volts |
Cycle Life: |
About 6000 Times |

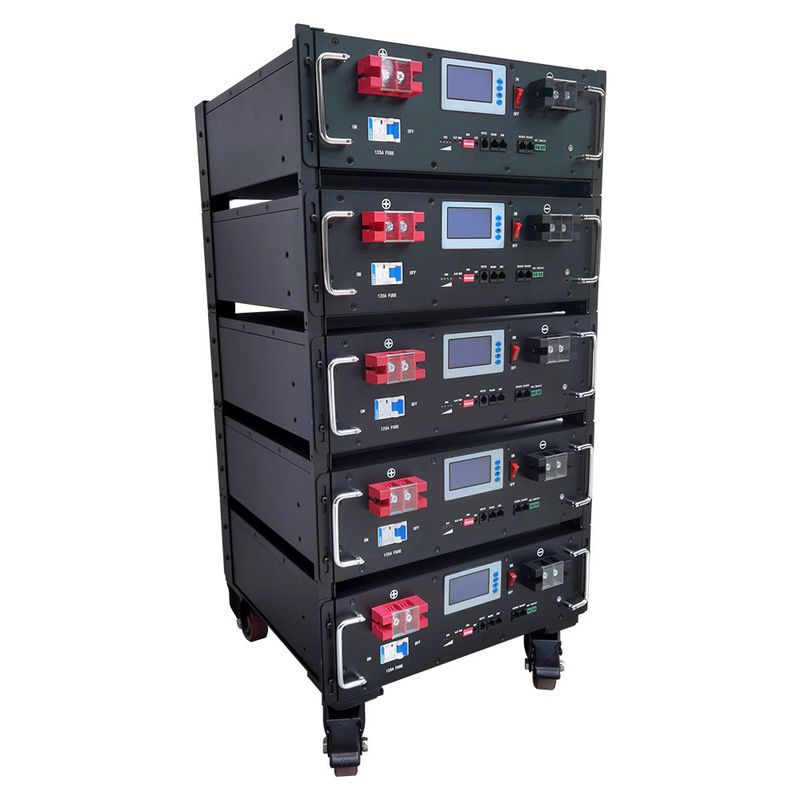

5 kwh Battery 48V 200Ah 51.2v Rack Battery Energy Storage LiFePO4 Lithium Battery Pack
LiFePO4 Lithium Battery Pack Description:
1. No More WaterMaintenance
Simplify your operations by nolonger needing to water
batteries! Stop worrying aboutacid spills and water
maintenance schedules, andspend your time focused on thecore work of moving product.Once you
switch to lithium-ion, you'Tl nebatteries again.
2. Lower Overall Costs
Lithium-ion technology reducescosts in many ways, includinglowering energy bills needed torun
your equipment, replacingbattery packs far less often andimproving productivity by nothaving to swap
batteries between shifts - simply rechargeduring breaks with onboard fastcharging.
3. Longer Lasting
The flat discharge curve andhigh sustained woltage meansyour industrial equipment runsfaster on each
charge, withoutgetting sluggish Simplify youroperations with longer-lastingbatteries that give you an
accurate battery dischargeindicator.
LiFePO4 Lithium Battery Pack Parameter:
| Specification | Parameter |
| Battery Type |
LiFePO4 |
| Shipping voltage |
50v-54v |
| Norminal Voltage & Capacity | 48v 100Ah |
| Rated Capacity | 100Ah(0.3c charge 0.5c discharge) |
| Minimum Capacity | ≥Rated Capacity 95% |
| Internal resistance | ≤ 50mΩ |
| Charge Stop voltage | 58.4v |
| Discharge Stop voltage | 40V |
| Size(mm) | 520*460*145mm |
| Discharge temperature | -20℃~55℃ |
| Net Weight | 45kg |
| Cycle Life | 6000 cycles |
| Charging Mode | Constant Current and Constant voltage Charging CC&CV |
| Standard Charging Current |
50A |
| Maximum Continuous Charging Current | 100A |
| Maximum Continuous Discharge Current | 200A (instantaneous 400A, 3s) |
Rack-mounted battery packs are available in various sizes and configurations, with different voltage and
capacity options to suit different applications. They can be configured to provide different output voltages,
such as 48V, 72V, or 120V, and can store anywhere from a few kilowatt-hours to several hundred
kilowatt-hours of energy.
